Mmo Coated Titanium Anodes 1. Stable Working Ability Under High Current Density & Voltage2.High Electrolysis Efficiency 3.Stable Electrolysis Ability 4. High Anti-corrosion Property 5.the Matrix Can Be Recycled and Recoated with MMO for Reuse 6. Long Working Life Etc. by HOMIXE

Product details of the mmo coated titanium anodes

Product Specification

Product Name: MMO Coated Titanium circle pail electrode

Dimension: Different dimension and shape is available

Enhanced life: 40k mA/M2, 1 mol/L H2SO4, h=1200 h

Grade: Pure Titanium Gr1/Gr2

Feature: 1. Stable working ability under high current density & Voltage2.High electrolysis efficiency 3.Stable electrolysis ability 4. High anti-corrosion property 5.The matrix can be recycled and recoated with MMO for reuse 6. Long working life etc.

Product Overview

Combining the state-of-the-art production equipment and the advanced production method, HOMIXE mmo coated titanium anodes is given the finest workmanship in the industry. This product has achieved world-class standards of quality and cost performance ratio. The mmo coated titanium anodes produced by HOMIXE has a wide range of applications. We have found that this product has a tendency to be more applicable.

Product Information

More detailed information about mmo coated titanium anodes is provided for you as follows.

Titanium oxide coated titanium anode (MMO)

Titanium anodes known as titanium oxide coated titanium anodes (MMO) also known as stable size and shape anodes (anodes) The precursor coating is brushed on the titanium substrate to give it good electrocatalytic activity and electrochemical stability. The metal oxide coating thickness on the titanium anode: the electrocatalytic reaction is mainly the precious metal in the coating, only the precious metal content meets the requirements of use to ensure the normal operation of the anode product, the thickness is only the appearance, mainly by the number of brushes and the concentration of solvents, as well as the content of precious metals.

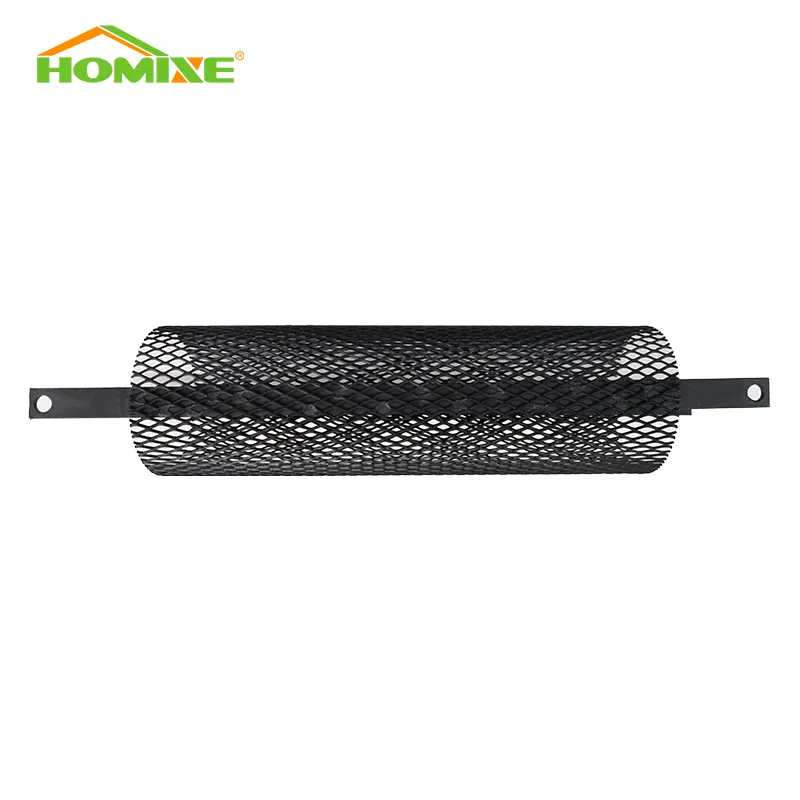

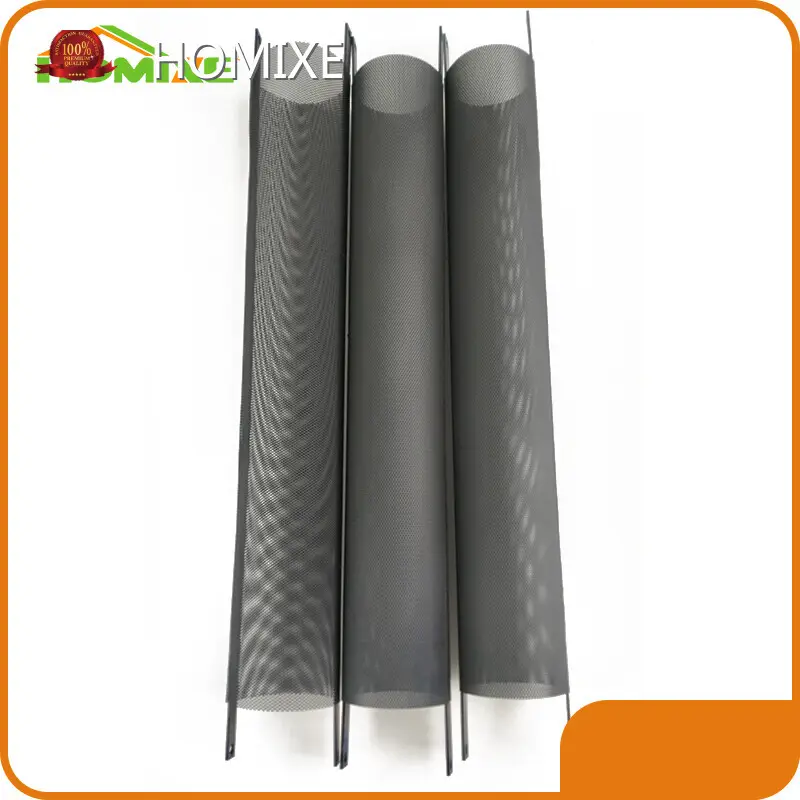

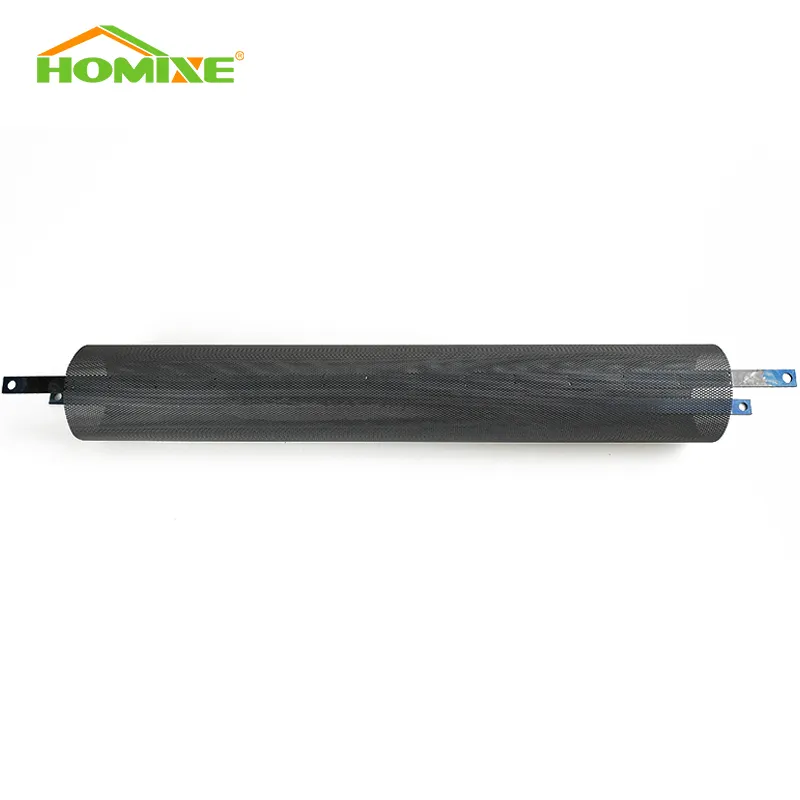

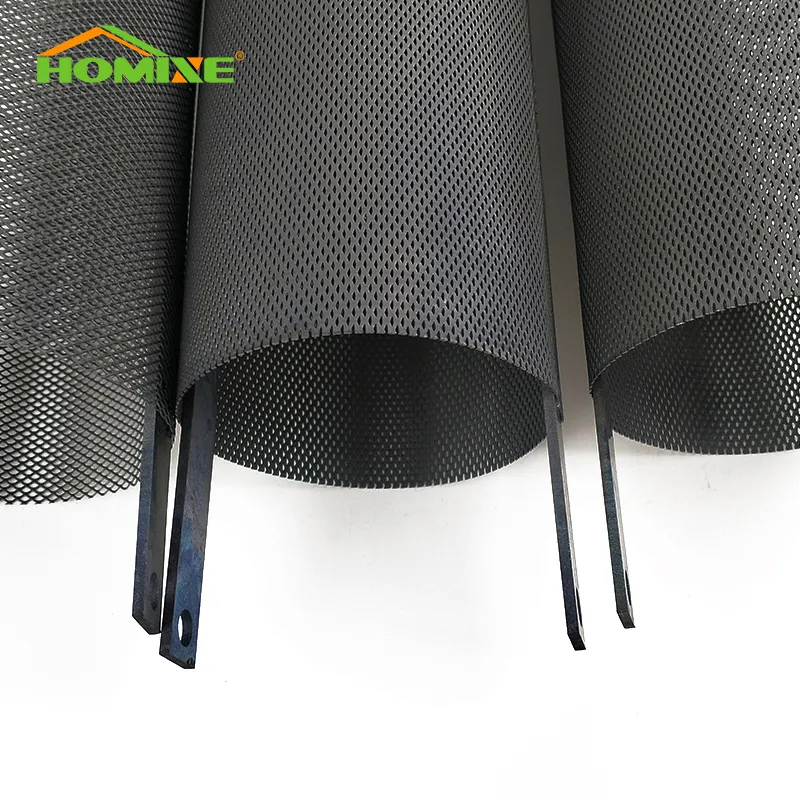

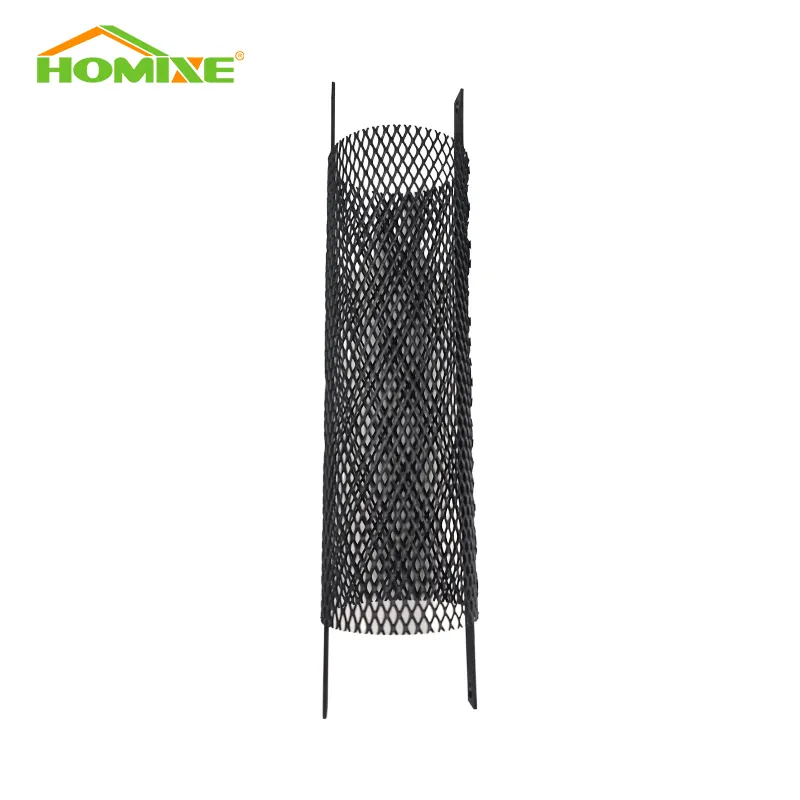

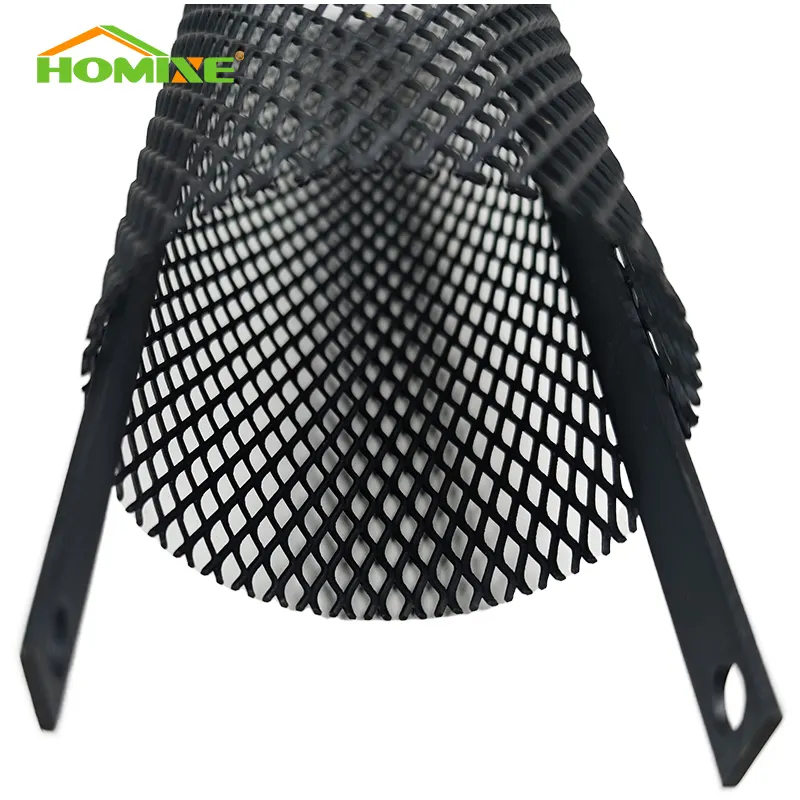

Product Display

carousel-2

Read More

carousel-7

Read More

carousel-5

Read More

Advantages Of MMO Anodes For Electrochemical Water Treatment

Energy Saving and Power

The working voltage is lowso the power consumption is small,the powerconsumption can be saved,and the DC power consumption can be reduced by 10% to20%.

Durable Coating for Longevity

MMO titanium anode has a long working life. In the diaphragm chlorine industry, metal anodes are resistant to chlorine and alkali corrosion, and the anode life has been more than 6 years, while graphite anodes are only 8 months.

Safe and High Quality Materials

MMO anodes are made of high quality raw materials and use metal anodes for high temperature, high current density operation of chlorate baths. The anode dimension is stable, and the distance between the electrodes does not change during the point solution, which ensures that the electrolytic operation is carried out at a stable tank voltage.



There are key factors to consider when choosing the right MMO anode for electrochemical water treatment

Application Needs

Different treatments like desalination, disinfection, and sewage treatment might require specific types of MMO anodes. Understanding the precise application can guide your choice.

Material Composition

The electrocatalytic coating, often composed of materials like Ruthenium Oxide or Iridium Oxide, can differ based on the application. It’s essential to choose an anode with a coating optimized for your water treatment type.

Current Density

Different treatments may require varying current densities. Ensure the anode can handle the required current density for your application.

Surface Area

The surface area of the anode can affect the current distribution and efficiency of the electrochemical process. Depending on the treatment scale, you might need anodes with larger or more intricate designs.

Application Scenario

Industrial Water Treatment

In industrial processes, titanium anodes ensure consistent water quality by generating disinfectants, which helps maintain stability and efficiency in production.

Municipal Water Supply Systems

For public water systems, titanium anodes enhance disinfection, ensuring the water meets safety standards and reducing contamination risks.

Chemical Manufacturing

The titanium anode plays a crucial role in the electrolysis process for producing sodium hypochlorite, a key component in disinfection and water treatment, making it an essential part of chemical manufacturing processes.

Wastewater Treatment Plants

They assist in treating and disinfecting wastewater, helping meet environmental standards and protecting water bodies from pollution.
