The showcases the innovative use of titanium material in our latest products. Made with high-quality and durable titanium, our products offer unparalleled strength and resilience. The use of titanium material ensures that our products are long-lasting and able to withstand wear and tear. Additionally, the lightweight nature of titanium makes our products comfortable and practical for everyday use. Experience the advanced qualities of titanium material with our exceptional product range.


Sintered porous discs, cartridges and baskets for chlor-alkali, water electrolysis and pharma filtration. Pore size 0.5 – 200 µm.


Hex, socket, self-tapping and special bolts in Grade 2 / Grade 5 (TC4). M1.6 – M30, custom thread, marine & medical grade.


Send DXF / STEP drawings — laser cutting, chemical etching and CNC machining in-house. First article in 7 days.


Expanded, woven and perforated mesh; cold-rolled plate and sheet from 0.3 mm to 50 mm. Custom laser-cut & chemical-etched profiles.


One factory, no middleman. Mill certs, EN 10204 3.1 and full QC report with every shipment.


MMO (Ru-Ir / Ir-Ta) and platinum coating available on plates, meshes and baskets for anode applications.
Share your project details with us. Our team can review material form, dimensions, processing needs and the information required for a quotation.
Start Your InquiryFrom standard material supply to customized processing, we work with your team to understand the technical details of each project.
Send us your specifications and let's discuss the right solution for your project.
Titanium material is one metal family in three working forms — porous filters that clean, mesh & plate that conduct and structure, and screws that hold it all together. All are cut from commercially pure titanium (Gr.1 / Gr.2).


Every part in this family starts as the same base metal: commercially pure titanium (Grade 1 / Grade 2) — light, strong, and protected by a natural oxide film that regrows instantly in air or water. That film is why titanium shrugs off seawater, chlor-alkali and hypochlorite that eat stainless steel alive.

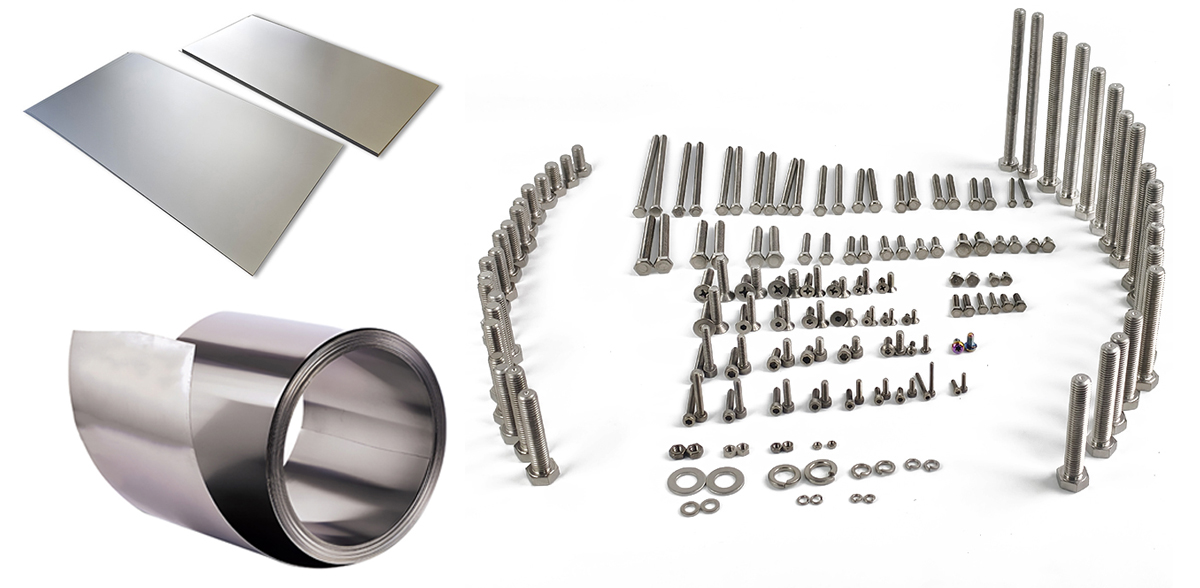

The same metal is then delivered in three working forms:

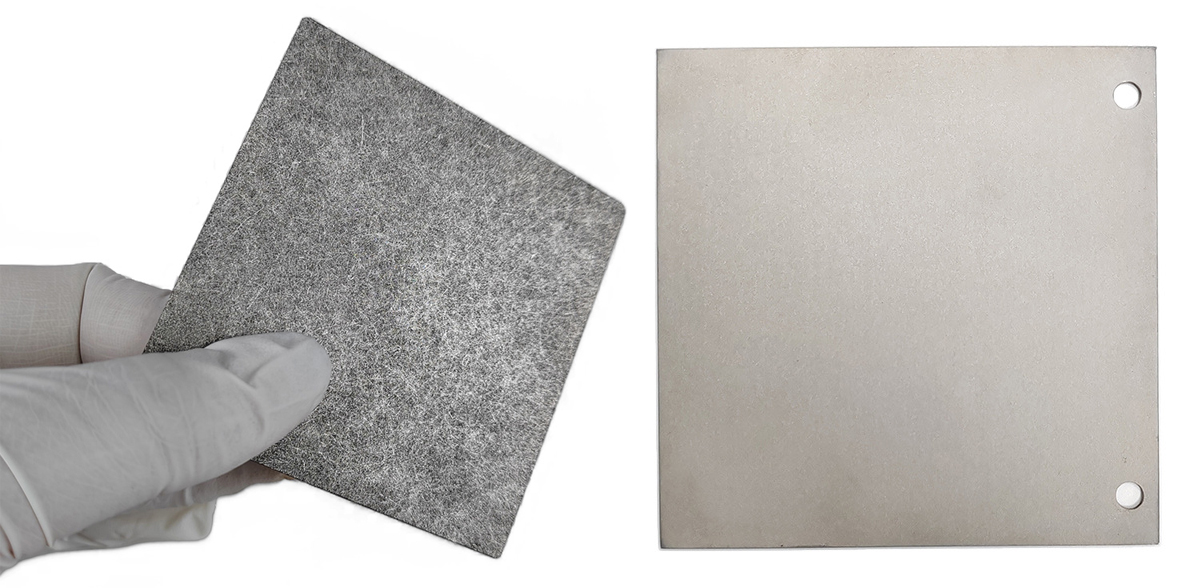

Titanium Filter — sintered porous titanium with controlled pores from 0.5 to 200 µm. It filters hot, corrosive fluids without clogging or deforming, and can be back-flushed and reused for years.
Titanium Mesh & Plate — expanded, woven or solid sheet. It works as electrode substrate, current collector and structural plate; the same sheet can be MMO- or Pt-coated for anode duty.
Titanium Screw — Grade 2 / Grade 5 fasteners that never rust, never gall, and hold 40 % lighter than steel at equal strength.
Put the three together and you have a complete build in one metal: a filter that keeps the fluid clean, a plate or mesh that carries the current, and screws that hold the assembly together through years of salt water and chlorine — with none of the galvanic corrosion you get when dissimilar metals meet.
Because all three come from one factory, grades, tolerances and batch quality match across your whole build — the filter, the plate and the screw fit together the first time.
We focus on matching titanium material characteristics with real production requirements—not simply supplying a metal grade. Our team can support material selection, specification review and processing coordination.
Compare commercially pure titanium and titanium alloys against strength, forming and corrosion requirements.
Discuss thickness, width, length, diameter, tolerances and cut-to-size requirements.
Request applicable inspection reports, material certificates and batch identification with your order.
From sample evaluation to repeat orders, align material form and supply plan with your production schedule.
A factory-direct manufacturer of electrocatalytic titanium materials — built to your drawing, your process and your duty cycle.


Because we make the material ourselves — we do not resell it. HOMIXE has focused on titanium materials since 2013, producing titanium filters, mesh & plate, screws and custom-machined parts in our own workshop in Foshan, China. Buying factory-direct means no middleman markup, engineering support on your specification before production starts, and full control over material grade, tolerance and batch quality. Every order ships traceable to its inspection records — from a 5-piece sample to OEM production.
Use this table as an initial material-selection reference. Actual properties depend on product form, thickness, heat treatment and applicable standard edition.
| Grade | UNS / Common Designation | Material Family | Key Characteristics | Typical Applications |
|---|---|---|---|---|
| Grade 1 | R50250 | Commercially Pure | Excellent formability; high corrosion resistance | Chemical equipment, deep drawing |
| Grade 2 | R50400 | Commercially Pure | Balanced strength, weldability and corrosion resistance | Industrial equipment, heat exchangers |
| Grade 3 | R50550 | Commercially Pure | Higher strength than Grades 1–2 | Pressure-related components, fabrication |
| Grade 4 | R50700 | Commercially Pure | Highest strength among common CP grades | Industrial and specialty components |
| Grade 5 | R56400 · Ti-6Al-4V | Alpha-Beta Alloy | High strength-to-weight ratio; heat treatable | Aerospace, medical, engineering parts |
| Grade 7 | R52400 · Ti-0.2Pd | CP + Palladium | Enhanced resistance in reducing environments | Chemical processing equipment |
| Grade 9 | R56320 · Ti-3Al-2.5V | Alpha-Beta Alloy | Good strength and formability | Tubing, sporting and aerospace parts |
| Grade 12 | R53400 | Corrosion-Resistant Alloy | Improved crevice corrosion resistance | Heat exchangers, chemical processing |
Important: This is a general comparison, not a purchase specification or guaranteed property statement. Confirm chemistry, mechanical properties, dimensions, tolerances and standard (ASTM / ASME / AMS / GB or other) before order placement.
| Product Form | Key Ordering Dimensions | Common Supply Condition | Customization Points |
|---|---|---|---|
| Sheet / Plate | Thickness × Width × Length | Hot rolled / Cold rolled / Annealed | Surface finish, flatness, cut size |
| Coil / Strip | Thickness × Width × Coil ID / OD | Annealed / Pickled / Bright | Slit width, edge condition, coil weight |
| Bar / Rod | Diameter or side × Length | Hot worked / Forged / Ground | Straightness, surface, machining allowance |
| Tube / Pipe | OD × Wall Thickness × Length | Seamless / Welded | End finish, tolerance, pressure design |
| Wire | Diameter × Coil Weight / Length | Annealed / Drawn | Spool type, surface, tensile requirement |
Quality requirements are defined against the agreed product specification and order documentation. Inspection scope can be discussed before production.
Review material identification, dimensions, surface condition and supplied documentation.
Inspection points can include thickness, width, diameter, length, flatness and visual condition.
Applicable mill test certificates, inspection reports and packing identification can be provided as agreed.
Certification and test availability varies by material source, product form and order requirements. HOMIXE will confirm the exact documents available for each quotation.


Itemized quote with grade, tolerances, tooling & lead time.


First-article in 7 – 10 days with inspection report.


QC dimensional + material report. Vacuum-bagged export packing.

Where the material beginsHOMIXE was founded in Foshan, Guangdong in 2013, in the heart of China's titanium processing belt. What started as a small workshop making titanium fasteners has grown into an 8 200 m² factory with more than 120 staff, covering the full chain from raw titanium sheet to finished filter, mesh, plate and screw. We buy raw material directly from certified domestic mills — every incoming coil is checked for chemistry by XRF before it is allowed into production, so a bad batch never reaches your order. | What runs on our floorOur workshop runs twelve vacuum sintering furnaces for porous titanium, a cold-rolling line for sheet and plate down to 0.3 mm, five laser cutting machines with ±0.05 mm accuracy, a chemical etching line for burr-free perforation, eight CNC machining centres for screws and special parts, and MMO / platinum coating furnaces for anode users. A dedicated test lab performs tensile, hardness, salt-spray, bubble-point and dimensional inspection — so the QC report you receive is generated in-house, not copied from a supplier. | How we work with B2B buyersAround 80 % of our output goes to overseas B2B buyers — water treatment contractors, electrolysis equipment builders, chemical plant maintenance teams and OEM distributors across 40+ countries. That shapes how we work: English-speaking engineers answer technical questions directly, drawings are reviewed within 24 hours, quotes come back the same day, and MOQ stays at one piece for stock items. For OEM customers we keep tooling and inspection records on file so repeat orders ship identical to the first batch, year after year. |
| Materials in Stock | CP Titanium Gr.1 / Gr.2 · Ti-6Al-4V (Gr.5) · Ti-Pd alloy |
| Forms | Sheet · Plate · Bar · Tube · Wire · Mesh · Sintered disc · Custom profile |
| Thickness Range | 0.05 mm foil · 0.3 mm sheet · 0.5 – 50 mm plate |
| Stock Dimensions | 1000 × 2000 mm · 1220 × 2440 mm · 1500 × 3000 mm |
| Tolerance | ±0.01 mm (precision) · ±0.05 mm (standard) · ±0.2 mm (commercial) |
| Surface Finish | Pickled · Brushed · Mirror (Ra ≤ 0.8 µm) · Anodized · PVD · MMO / Pt-coated |
| Secondary Processes | Laser cut · Chemical etch · CNC mill/turn · Stamping · Welding · Bending |
| Lead Time | Stock items 3 – 5 days · Custom 7 – 25 days |
















Verified quality, compliance and performance — backed by third-party certification and accredited test reports.
HOMIXE is the titanium material brand of Foshan Xinjintai Technology Co., Ltd. We aim to connect material knowledge, responsive communication and flexible supply support for customers working with titanium.
Whether you are sourcing standard mill products or developing a custom component, our focus is to understand the application, confirm the specification and coordinate a dependable supply solution.
We start with your operating environment and manufacturing process.
Clear communication from technical inquiry through delivery.
