| Product Name | Sodium Hypochlorite Generator | Brand Name | HOMIXE |
| Model Number | HM-SHG30 | Feature | Insoluble anode, dimensional stability; The positive distance is stable, and the battery voltage is stable. Low working voltage, save electricity |
| Grade | GR1 Titanium | Technique | Rolling, Cutting, Welding, Painting |
| Application | Sodium hypochlorite generator;Hotel swimming pool Indoor swimming pool electrolyzer; Decorative pond electric chlorinator | Dimension | Customization |
| Coating | Ru-Ir Ir-Ta Platinum | Coating Thickness | 8~12micron |
| Product Name | Sodium Hypochlorite Generator | Brand Name | HOMIXE |
| Model Number | HM-SHG30 | Feature | Insoluble anode, dimensional stability; The positive distance is stable, and the battery voltage is stable. Low working voltage, save electricity |
| Grade | GR1 Titanium | Technique | Rolling, Cutting, Welding, Painting |
| Application | Sodium hypochlorite generator;Hotel swimming pool Indoor swimming pool electrolyzer; Decorative pond electric chlorinator | Dimension | Customization |
| Coating | Ru-Ir Ir-Ta Platinum | Coating Thickness | 8~12micron |

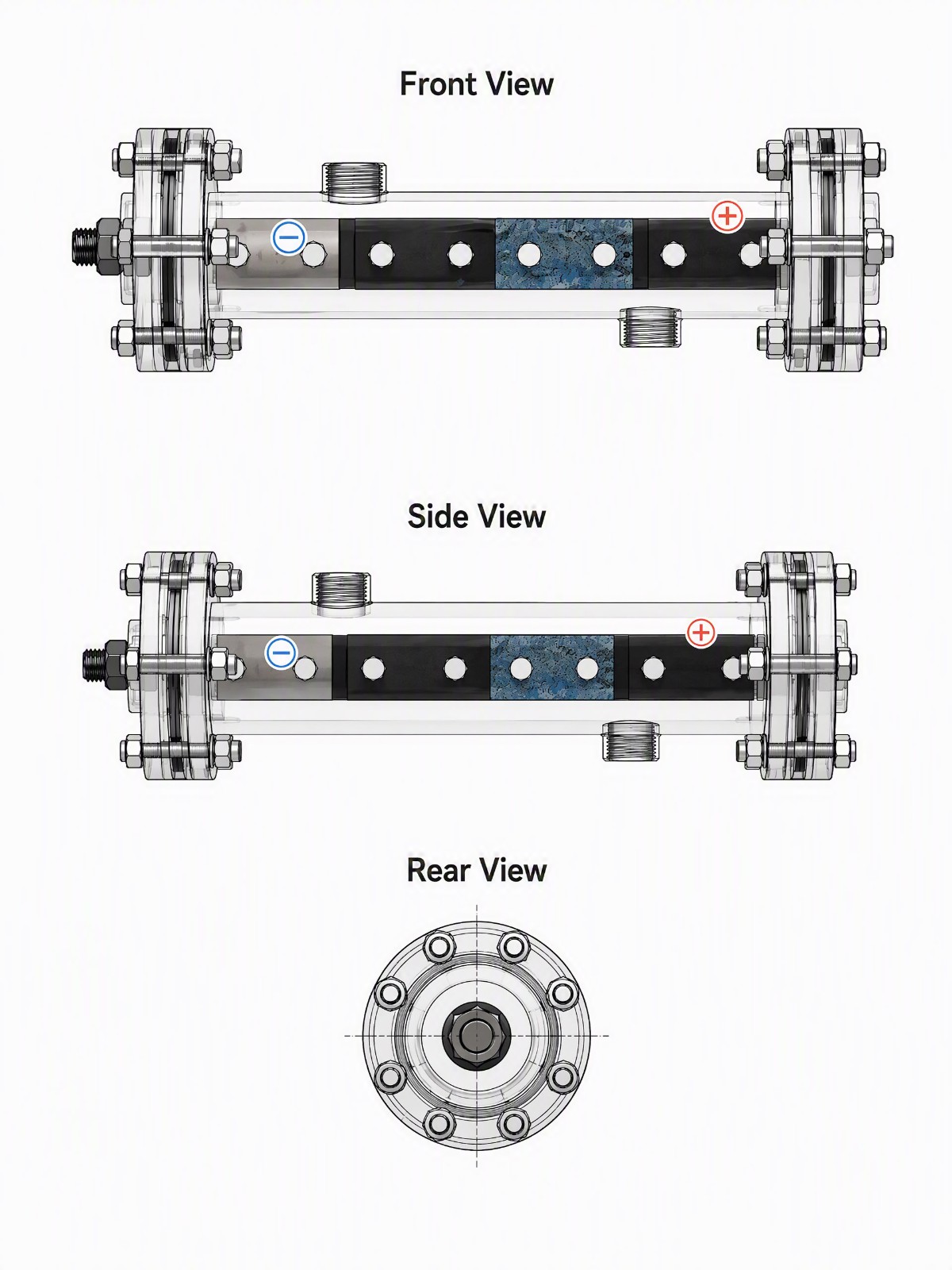

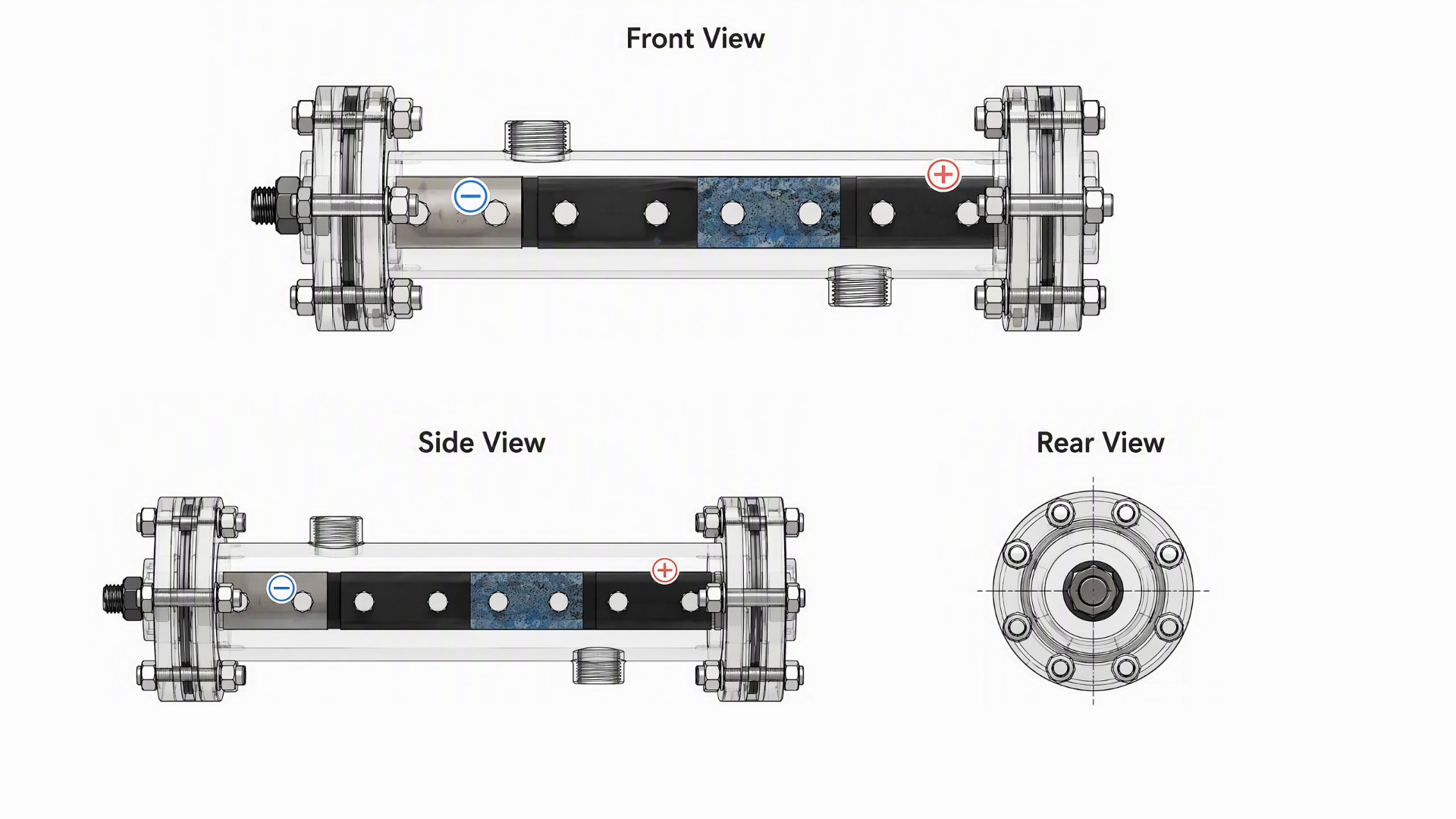

Product Multiple Angles
A 30g/h sodium hypochlorite generator is a compact electrochemical system that produces 30 grams of available chlorine per hour by electrolysing a salt (brine) solution. It combines a titanium electrolytic cell, a DC power supply and a dosing set into one small, easy-to-mount unit. Instead of buying, transporting and storing liquid bleach, the user simply supplies salt and water and generates exactly the amount of disinfectant needed.
With an hourly output of 30 g, this model suits small pools, household water systems and small treatment points - enough to keep water clean without oversizing the equipment or wasting chemicals.
How Does a Sodium Hypochlorite Generator Work?
Salt and water are prepared into brine and supplied to the electrolytic cell. DC power drives the electrochemical reaction through the titanium electrodes, generating chlorine that reacts in the solution to form sodium hypochlorite. The generated disinfectant can then be stored and dosed into the treated water according to application requirements.

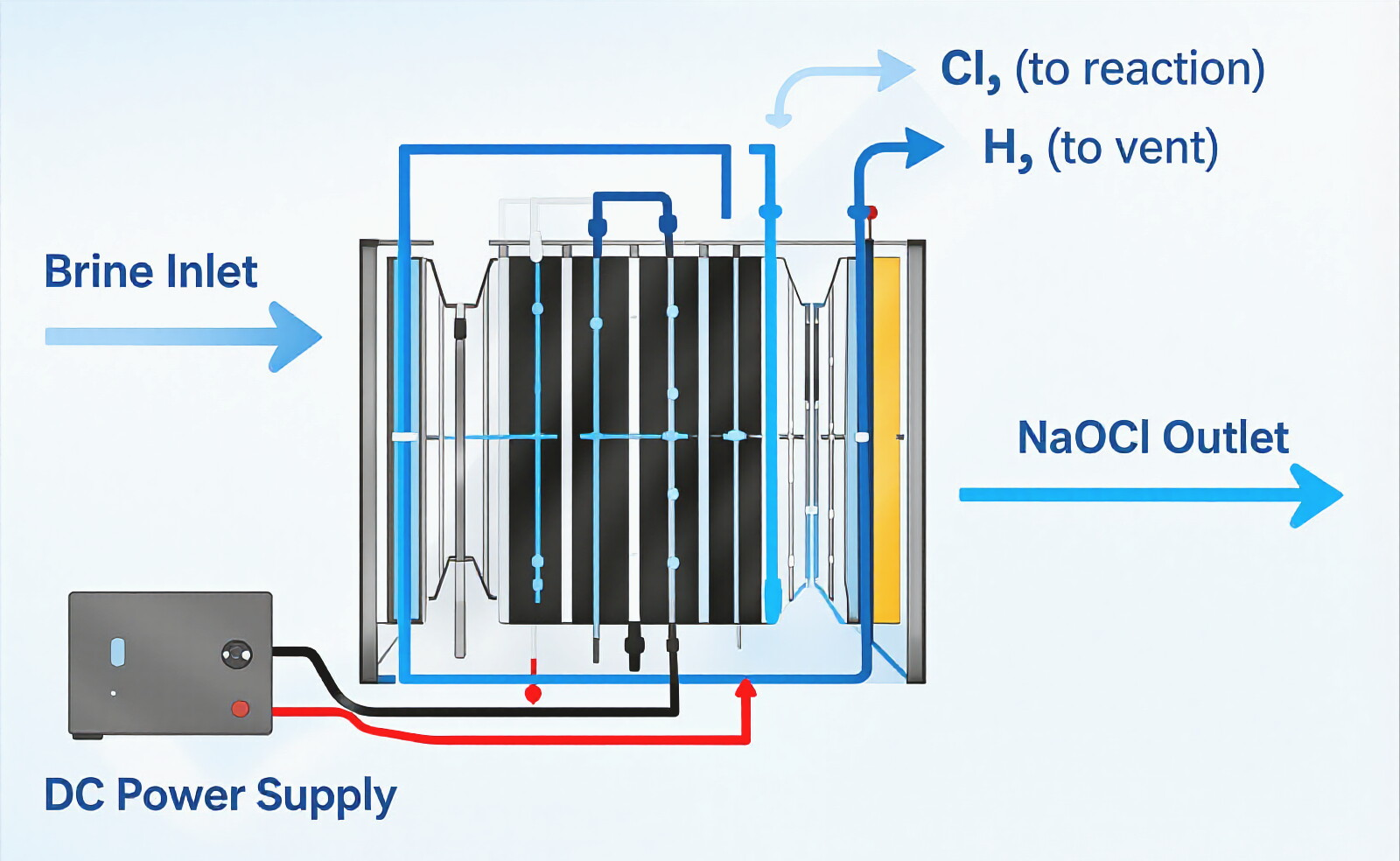

Electrolysis Process
Flow labels: 1 Brine enters the electrolytic cell 2 DC power drives electrolysis 3 Chlorine is generated at the anode 4 Chlorine reacts to form NaOCl 5 Hydrogen is separated and ventilated 6 NaOCl is stored and dosed |  |

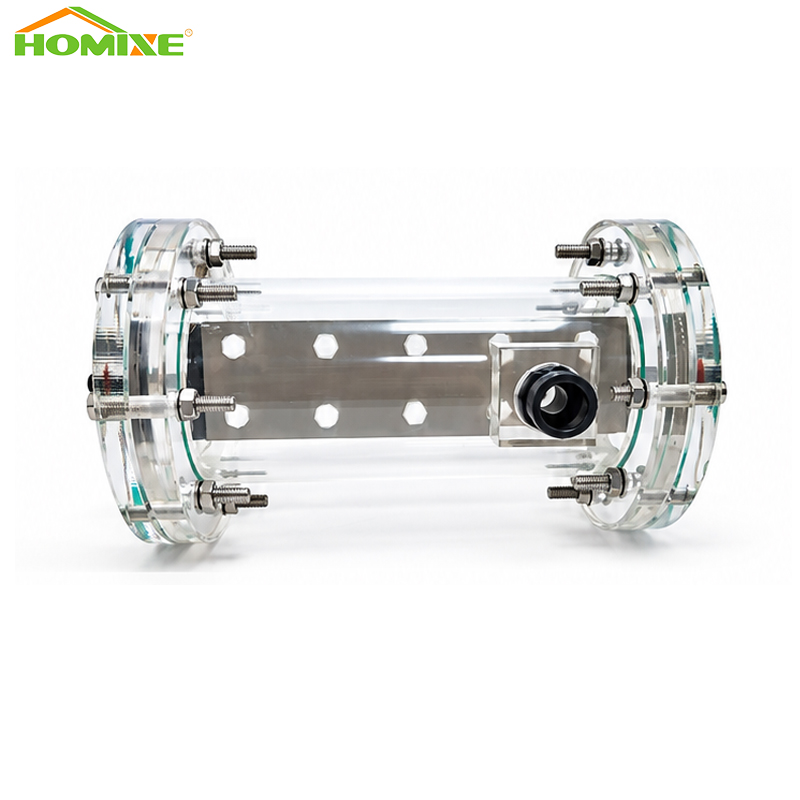

Titanium Electrolytic Cell — The Core of the System
 |
|
Technical Specifications
| Item | Spec |
| Product Type | Sodium Hypochlorite Generator |
| Generation Method | Brine Electrolysis |
| Electrode Substrate | Grade 1 Titanium |
| Electrode Coating | Ru-Ir / Ir-Ta / Customized · 8–12 μm |
| NaOCl Concentration | Customized |
| Production Capacity | Customized |
| Power Supply | Customized |
| Installation | Skid-mounted / Customized |
| Electrolytic Cell | Customized |
| OEM / ODM | Available |

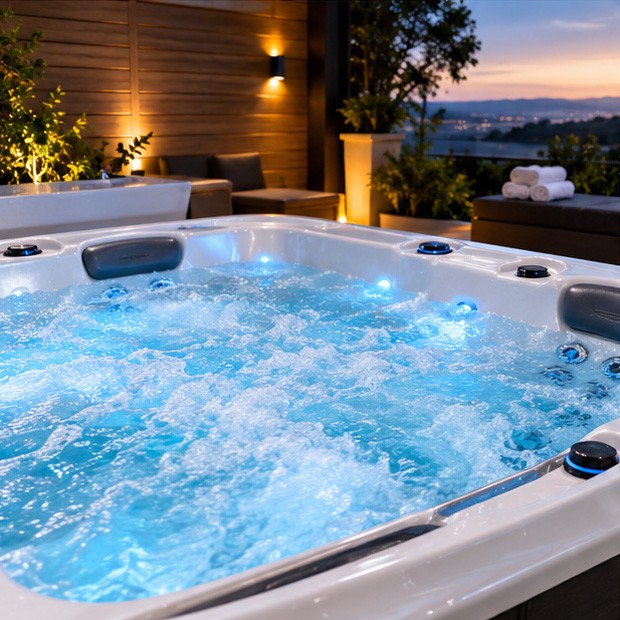

Spa and hot tub water is warm and heavily used, which makes bacterial growth fast. Producing disinfectant on demand gives owners a fresh, controllable dose after every session instead of relying on stored liquid bleach.

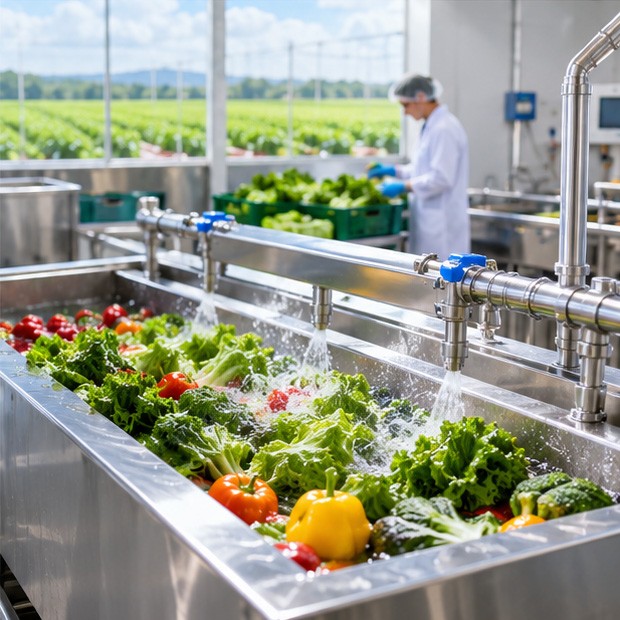

Small farms and food workshops apply the generated solution to washing water, tool rinse and surface sanitation, replacing bottled bleach with disinfectant made on site and always available at the strength required.

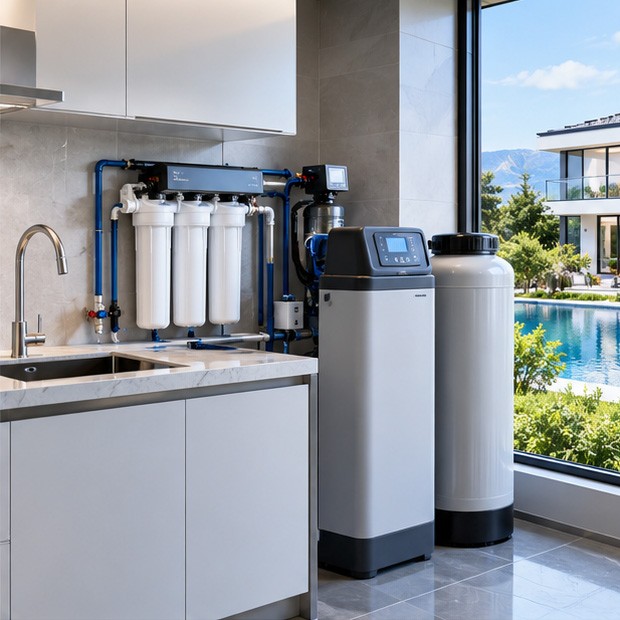

Villas and holiday homes use the same unit to disinfect stored and well water, protecting taps, showers, tanks and irrigation lines with a continuous low-dose supply of chlorine produced on site from ordinary salt.

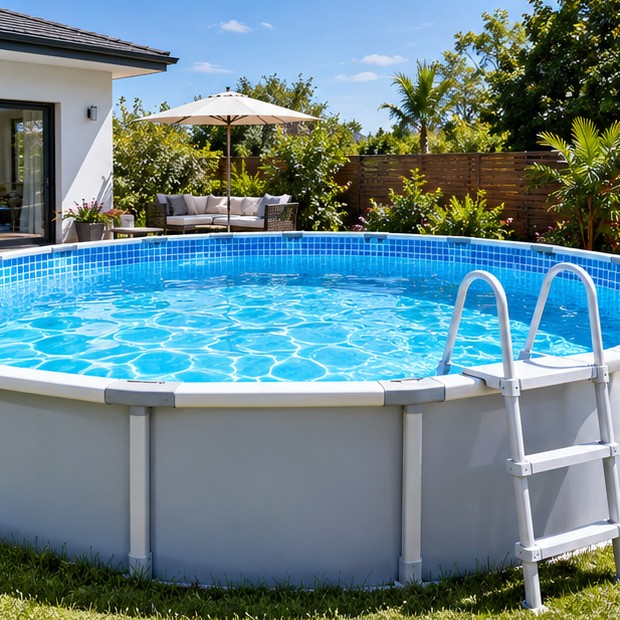

For private and above-ground pools, the 30g/h generator holds chlorine at a steady level using only salt, water and electricity. At 30 grams per hour it matches the demand of smaller water volumes, so there is no bleach to buy, carry or store, and no risk of running out mid-season.
Why switch to on-site generation? Chlorine gas and 10–12% bleach are classified as dangerous goods: they must be transported, stored and handled under strict rules, and their price and supply sit outside your control. On-site sodium hypochlorite generation replaces that supply chain with salt and water. Production follows demand, so you never run out of disinfectant; the 0.7–0.8% product stays below hazmat thresholds; and automated dosing cuts chemical waste and labour. For plants in remote or fast-growing regions, this can be the difference between a stable disinfection supply and an interrupted one.
| Feature | On-Site Generation | Bulk Chemical Supply |
| On-site production | ✓ | — |
| Transportation dependency | Reduced | Higher |
| Chemical storage | Reduced | Required |
| Production flexibility | ✓ | — |
| Automated operation | ✓ | — |
| Customized capacity | ✓ | Limited |
| Suitable for remote sites | ✓ | Depends on supply |
On-site sodium hypochlorite generation can help users reduce dependence on chlorine, while ensuring stable supply. We offer tailored systems for various application needs.
Most generators on the market are assembled from bought-in cells. HOMIXE is different: we are the anode factory.
The electrode is our own product. Every HOMIXE generator is built around coated titanium anodes we manufacture ourselves — MMO, Ru-Ir, Ir-Ta or platinum on GR1 titanium, 8–12 µm coating. The anode decides cell life and power consumption, so making it in-house means a lower-voltage, longer-lasting cell under our own quality control, at factory-direct cost.
Proven in electrodes, trusted by OEMs. For years we have supplied coated titanium anodes and electrolytic cells to electrolyzer manufacturers worldwide — the same electrodes now running inside our own generators.
Tailored, not off-the-shelf. Output, tank size, dosing logic and automation are configured to your water and site. Private-label and OEM/ODM programs welcome.
Backed after the sale. ISO9001, RoHS, CE and SGS certified, with a 1-year system warranty — and because we make the electrodes, spare cells are stocked in the same factory for fast re-supply.
OEM & Customized Solutions
Different projects require different electrode dimensions, coating systems, cell structures and electrical configurations. HOMIXE supports customized solutions for OEM manufacturers, water treatment companies and system integrators.
For water treatment projects and complete disinfection systems
For OEM equipment manufacturers and system integrators
For electrolysis system replacement and customized applications
