- Titanium Anode Electrolyzer Manufacturer & Water Electrolysis Hydrogen Solutions Supplier
| Product Name | Sodium Hypochlorite Generator | Brand Name | HOMIXE |
| Model Number | HM-SHG500 | Feature | Insoluble anode, dimensional stability; The positive distance is stable, and the battery voltage is stable. Low working voltage, save electricity |
| Grade | GR1 Titanium | Technique | Rolling, Cutting, Welding, Painting |
| Application | Sodium hypochlorite generator;Hotel swimming pool Indoor swimming pool electrolyzer; Decorative pond electric chlorinator | Dimension | Customization |
| Coating | Ru-Ir Ir-Ta Platinum | Coating Thickness | 8~12micron |
| Product Name | Sodium Hypochlorite Generator | Brand Name | HOMIXE |
| Model Number | HM-SHG500 | Feature | Insoluble anode, dimensional stability; The positive distance is stable, and the battery voltage is stable. Low working voltage, save electricity |
| Grade | GR1 Titanium | Technique | Rolling, Cutting, Welding, Painting |
| Application | Sodium hypochlorite generator;Hotel swimming pool Indoor swimming pool electrolyzer; Decorative pond electric chlorinator | Dimension | Customization |
| Coating | Ru-Ir Ir-Ta Platinum | Coating Thickness | 8~12micron |
Product Multiple Angles
A 500g/h system is arranged around four main parts: a brine preparation section, the titanium electrolytic cell stack, a DC power supply and a control and dosing unit. Salt is dissolved to a controlled concentration, fed to the cells and electrolysed; the resulting sodium hypochlorite is collected in a storage tank and dosed into the water system, with hydrogen safely separated and vented.
Because output reaches 500 grams per hour, this class of generator is used where disinfectant demand is continuous and high - large public pools, water parks, fish farms and industrial water circuits - replacing bulk chemical deliveries with on-site production.
How Does a Sodium Hypochlorite Generator Work?
Salt and water are prepared into brine and supplied to the electrolytic cell. DC power drives the electrochemical reaction through the titanium electrodes, generating chlorine that reacts in the solution to form sodium hypochlorite. The generated disinfectant can then be stored and dosed into the treated water according to application requirements.
Electrolysis Process
Flow labels: 1 Brine enters the electrolytic cell 2 DC power drives electrolysis 3 Chlorine is generated at the anode 4 Chlorine reacts to form NaOCl 5 Hydrogen is separated and ventilated 6 NaOCl is stored and dosed |  |

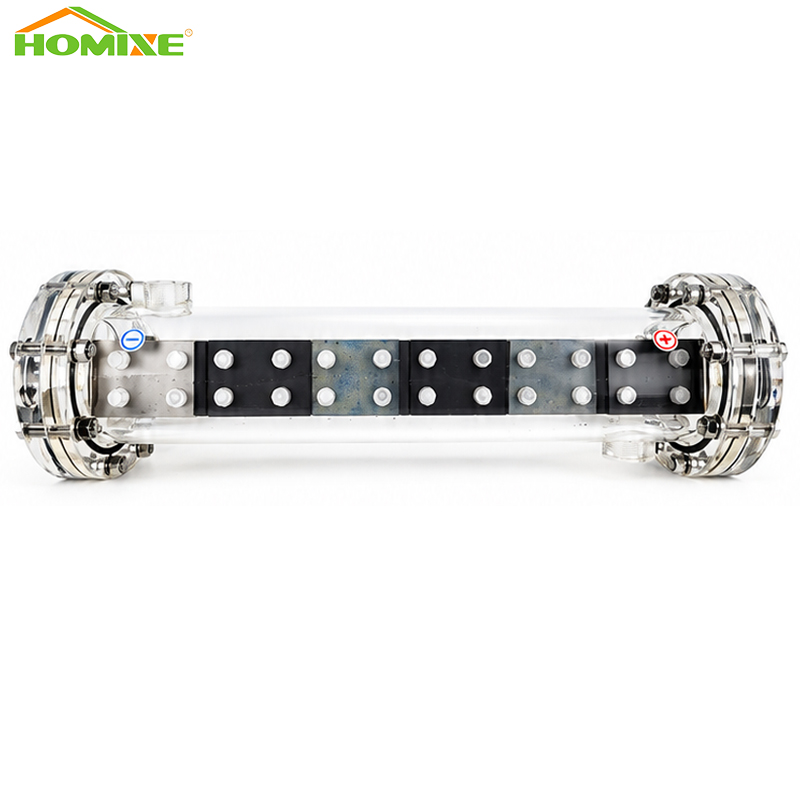

Titanium Electrolytic Cell — The Core of the System
 |
|
Technical Specifications
| Item | Spec |
| Product Type | Sodium Hypochlorite Generator |
| Generation Method | Brine Electrolysis |
| Electrode Substrate | Grade 1 Titanium |
| Electrode Coating | Ru-Ir / Ir-Ta / Customized · 8–12 μm |
| NaOCl Concentration | Customized |
| Production Capacity | Customized |
| Power Supply | Customized |
| Installation | Skid-mounted / Customized |
| Electrolytic Cell | Customized |
| OEM / ODM | Available |

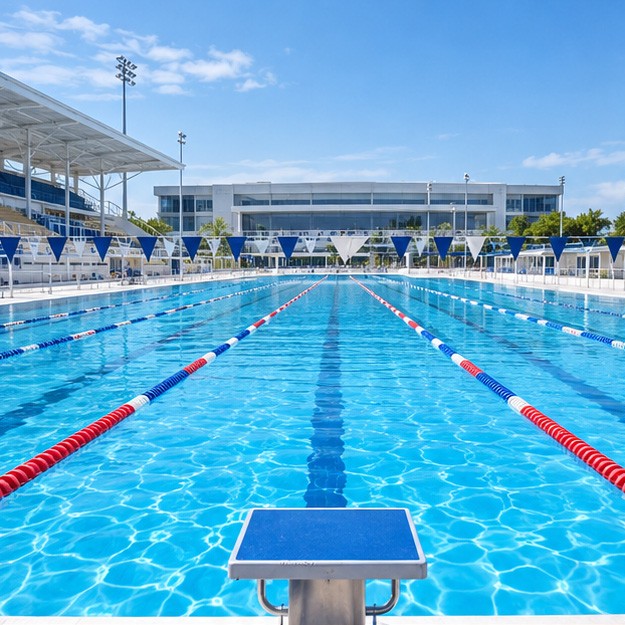

Large public and municipal pools must hold chlorine residuals under continuous load and be able to audit them. A 500g/h generator produces disinfectant at the rate the pool consumes it, so residuals stay within limits without manual dosing rounds.

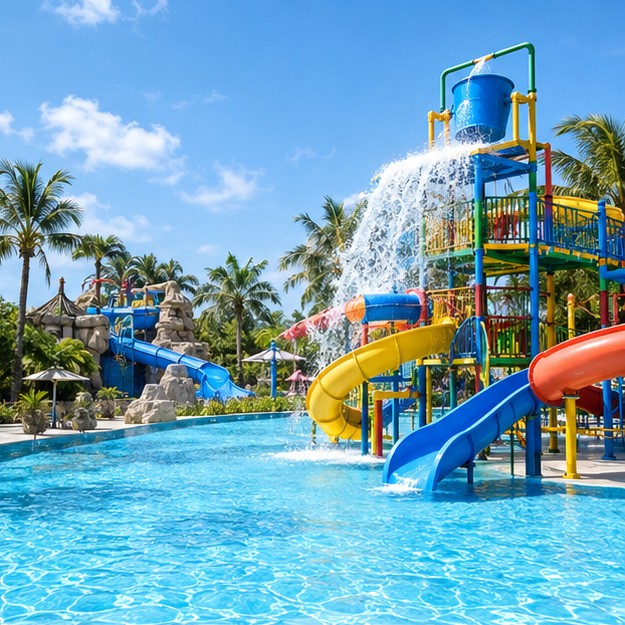

Water parks combine enormous water volumes with peak visitor surges. High continuous output keeps every basin supplied, and the 0.7-0.8% product is simpler and safer to store than bulk hypochlorite delivered by tanker.

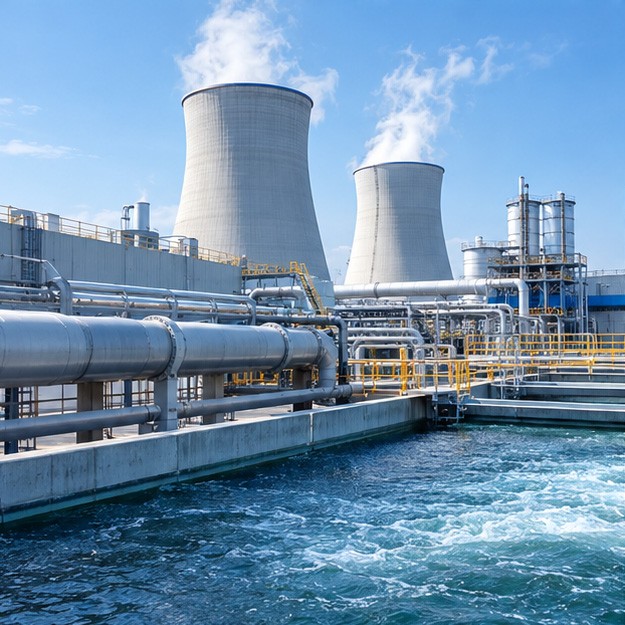

Industrial cooling and process circuits need stable, round-the-clock chlorination to control biofilm. The 500g/h system runs continuously under automated control, replacing chemical deliveries entirely with salt, water and electricity.

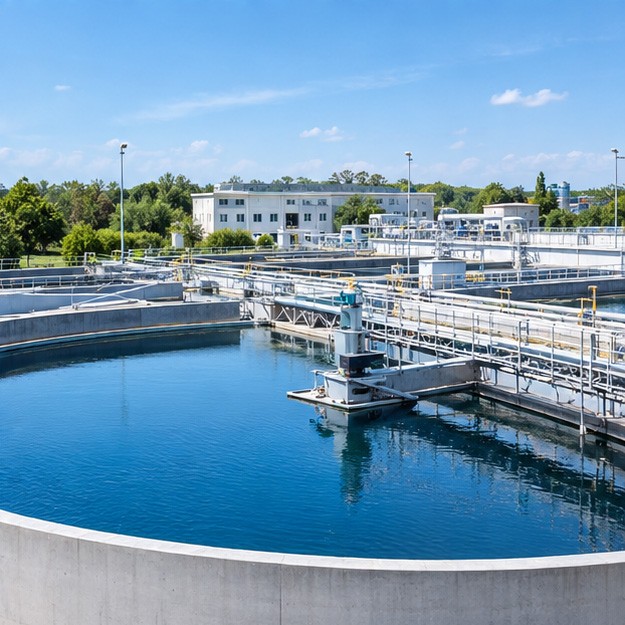

Medium municipal and district water supplies use this capacity to disinfect drinking water at the plant, giving a controllable dose with full independence from external chemical supply chains.
Why switch to on-site generation? Chlorine gas and 10–12% bleach are classified as dangerous goods: they must be transported, stored and handled under strict rules, and their price and supply sit outside your control. On-site sodium hypochlorite generation replaces that supply chain with salt and water. Production follows demand, so you never run out of disinfectant; the 0.7–0.8% product stays below hazmat thresholds; and automated dosing cuts chemical waste and labour. For plants in remote or fast-growing regions, this can be the difference between a stable disinfection supply and an interrupted one.
| Feature | On-Site Generation | Bulk Chemical Supply |
| On-site production | ✓ | — |
| Transportation dependency | Reduced | Higher |
| Chemical storage | Reduced | Required |
| Production flexibility | ✓ | — |
| Automated operation | ✓ | — |
| Customized capacity | ✓ | Limited |
| Suitable for remote sites | ✓ | Depends on supply |
On-site sodium hypochlorite generation can help users reduce dependence on chlorine, while ensuring stable supply. We offer tailored systems for various application needs.
Most generators on the market are assembled from bought-in cells. HOMIXE is different: we are the anode factory.
The electrode is our own product. Every HOMIXE generator is built around coated titanium anodes we manufacture ourselves — MMO, Ru-Ir, Ir-Ta or platinum on GR1 titanium, 8–12 µm coating. The anode decides cell life and power consumption, so making it in-house means a lower-voltage, longer-lasting cell under our own quality control, at factory-direct cost.
Proven in electrodes, trusted by OEMs. For years we have supplied coated titanium anodes and electrolytic cells to electrolyzer manufacturers worldwide — the same electrodes now running inside our own generators.
Tailored, not off-the-shelf. Output, tank size, dosing logic and automation are configured to your water and site. Private-label and OEM/ODM programs welcome.
Backed after the sale. ISO9001, RoHS, CE and SGS certified, with a 1-year system warranty — and because we make the electrodes, spare cells are stocked in the same factory for fast re-supply.
OEM & Customized Solutions
Different projects require different electrode dimensions, coating systems, cell structures and electrical configurations. HOMIXE supports customized solutions for OEM manufacturers, water treatment companies and system integrators.
For water treatment projects and complete disinfection systems
For OEM equipment manufacturers and system integrators
For electrolysis system replacement and customized applications
