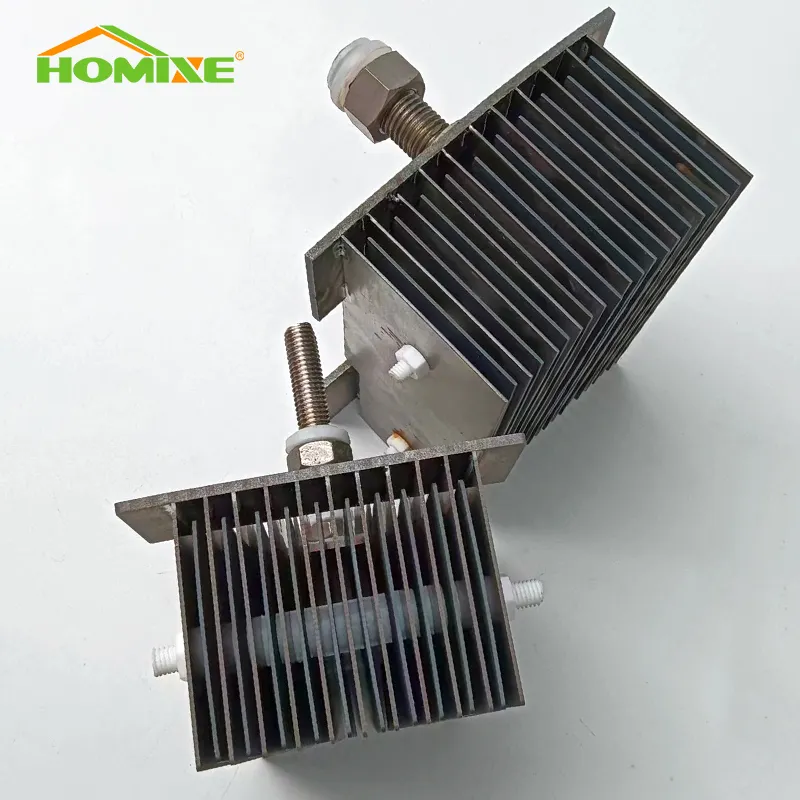

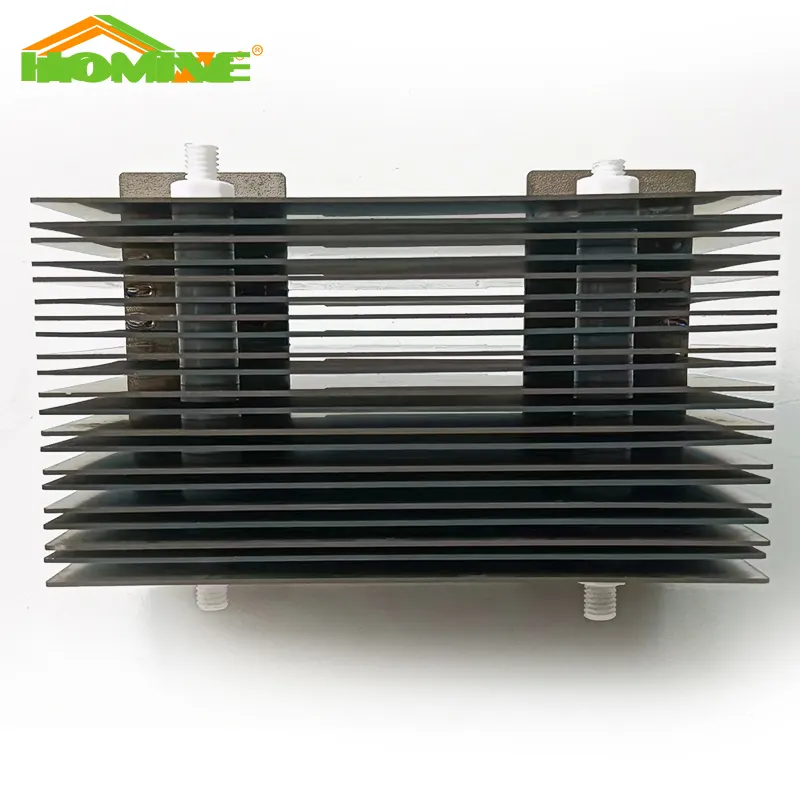

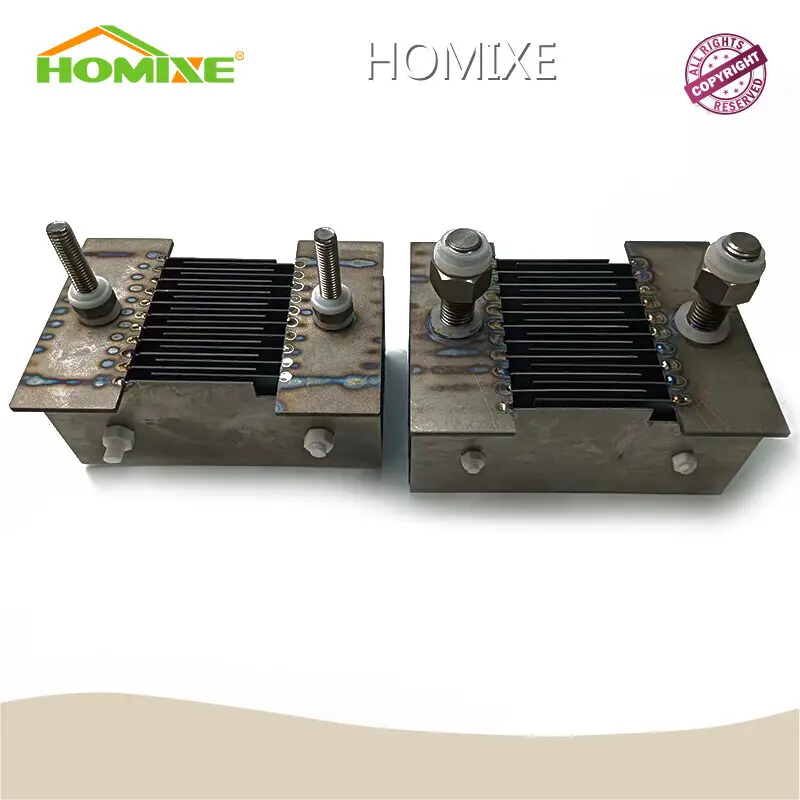

Electrolysis Cell Gr1 Pure Titanium As Substrate by HOMIXE

Product details of the electrolysis cell

Product Specification

Grade: Gr1 pure titanium as substrate , MMO coating

Brand Name: HOMIXE

Coating Thickness: 8~12micron

Feature: 1) Effective& environment-friendly method 2) High anti-corrosion property 3) High current efficiency property 4) Low chlorine evolution voltage 5) High catalytic property 6) Long lifetime 7) Light weight electrodes Keep the operating voltage stably

Product Overview

HOMIXE electrolysis cell is made of high-quality materials which are strictly selected by our experienced production team based on the application requirements and the industry quality standards. It is recognized for strong durability and relatively long service life. The actual application prospects of this product are broad.

Product Introduction

HOMIXE's electrolysis cell has the following advantages over products in the same category.

How to Design a suitable Electrolytic cell?

Application Analysis: Understand your specific application for water treatment, disinfection, or a different purpose?

Capacity and Output: Determine volume of water to be treated or theamount of sodium hypochlorite needed.

Electrode Type: Explore electrode choices like plates, rods, tubes, or innovative options like mesh, expanded meta.

Coating Material: Choose the right electrode material based on your electrolyte and operating conditions. MMO-coated titanium anodes are common for their corrosion resistance.

Materials Selection: Opt for construction materials like PVC, CPVC, PMMA, UPVC to match your application.

Gasket Options: Choose between EPDM or Fluoroelastomers for gasket materials.

Assembly Methods:Decide on assembling techniques – clamps, bolts and nuts, or tie rods.





Product Display

carousel-2

Read More

carousel-7

Read More

carousel-5

Read More

How does a Titanium Electrolyzer Cell work?

During electrolysis, Sodium Hypochlorite is produced as the primary product, while hydrogen gas is generated as a by-product due to its lower density. The chemical reactions can be expressed as follows:

2 NaCl + 2 H2O → Cl2 + H2 + 2 NaOH

These reactions primarily occur within a titanium electrolyzer, which is categorized into two basic types: seawater electrolysis and brine electrolysis. The classification is based on the feedstock source, with seawater being used for seawater electrolysis systems and crystallized salt for brine systems.

The titanium electrode assembly is a critical component of the electrolytic cell. It is made up of a dimensionally stable anode (DSA) and a cathode, both made of titanium. The DSA is responsible for generating the chlorine gas, while the cathode produces hydrogen gas.

Advantages of Our Titanium Electrolyzer Cell

Tailored Precision

Crafted to your precise requirements, our Titanium Electrolyzer can be customized in dimensions, sizes, and capacities, ensuring a seamless fit for your specific needs.

Welding and Flange Technology

Integrating titanium welding and flange technology, it effectively prevents high-pressure accumulation, guaranteeing robust welds.

Patented Electrode Structure Technology

Our proprietary electrode structure technology propels the electrolyzer cell, significantly reducing salt and power consumption. This innovation ensures efficient operation and reduced energy expenditures.

MMO-Coating

Our electrolysis cell features a delicate nano-coating of ruthenium and iridium oxide, comprising 20-25 layers. This MMO-coating extends the cell’s service life up to five years, rendering it an exceedingly cost-efficient solution.

Application Scenario

Industrial Water Treatment

In industrial processes, titanium anodes ensure consistent water quality by generating disinfectants, which helps maintain stability and efficiency in production.

Municipal Water Supply Systems

For public water systems, titanium anodes enhance disinfection, ensuring the water meets safety standards and reducing contamination risks.

Chemical Manufacturing

The titanium anode plays a crucial role in the electrolysis process for producing sodium hypochlorite, a key component in disinfection and water treatment, making it an essential part of chemical manufacturing processes.

Wastewater Treatment Plants

They assist in treating and disinfecting wastewater, helping meet environmental standards and protecting water bodies from pollution.

Company Information

Located in fo shan, FOSHAN HOMETI NEW MATERIAL CO.,LTD is a company dedicated to providing Hydrogen Production Module,Titanium Anode,PEM Electrolyzer,Titanium Metal and alloy product,Electrolyzer,Health Hydrogen Generator for customers. In the business management, our company attaches great importance to quality and credit, and we follow the enterprise spirit of 'optimistic and active, positive and aspirant, innovative and developing'. In order to provide quality product, we continuously enhance our core competitiveness, and gradually implement the development strategy of scale and industrialization. With the quality products, our customers could enjoy a relaxing experience. We have the powerful team management, strong production team, customer-focused business team, and inexorable research and development team to offer favorable conditions for our development. While providing quality products, HOMIXE is dedicated to providing personalized solutions for customers according to their needs and actual situations.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
