Titanium Anode 1. Electroplating. 2. Electrolytic Copper. 3. Electrolytic Copper Sulfate. 4. Hypochlorite Generator for Swimming Pool. 5. Sea Water Antifouling. 6. Cathode Protection. by HOMIXE

Product details of the titanium anode

Product Specification

Coating: Ruthenium/Iridium/Platinum

Feature: Corrosion resistance, reversibility, increased surface area, high current efficiency, extended service life, recyclable substrate

Grade: Titnaium TA1/TA2

Application: 1. Electroplating. 2. Electrolytic copper. 3. Electrolytic copper sulfate. 4. Hypochlorite generator for swimming pool. 5. Sea water antifouling. 6. Cathode Protection.

Product Overview

Superior and efficient performance of our titanium anode shows its an ideal choice for you. The performance of the product conforms to the very latest quality standards. HOMIXE's titanium anode can be used in different industries to meet the needs of customers. FOSHAN HOMETI NEW MATERIAL CO.,LTD has more than decades of years of history in R&D and production of titanium anode.

Product Information

Our titanium anode has the following differentiated advantages compared to similar products.

Material Introduction

In the product development process, we tested several electrode materials, among which the titanium-based ruthenium-iridium coating and titanium-plated platinum anode performed better, because the ruthenium-iridium mixed oxide coating has good electrocatalytic activity through a special process coated on the surface of the titanium substrate, both corrosion resistance and high electrolytic efficiency.

It turns out that by maximizing the interaction of the catalytic phase and surface area, they can improve the performance of conventional materials. This high-density coating technology allows very thin layers to be deposited, thus increasing cost effectiveness. The mixed metal oxide coated substrate will undergo multiple heat treatments at high temperatures. This process will achieve very good bonding properties between the mixed metal oxide coating and the substrate. The titanium substrate can be re-coated, electrically conductive and catalytically active just like a new battery anode.

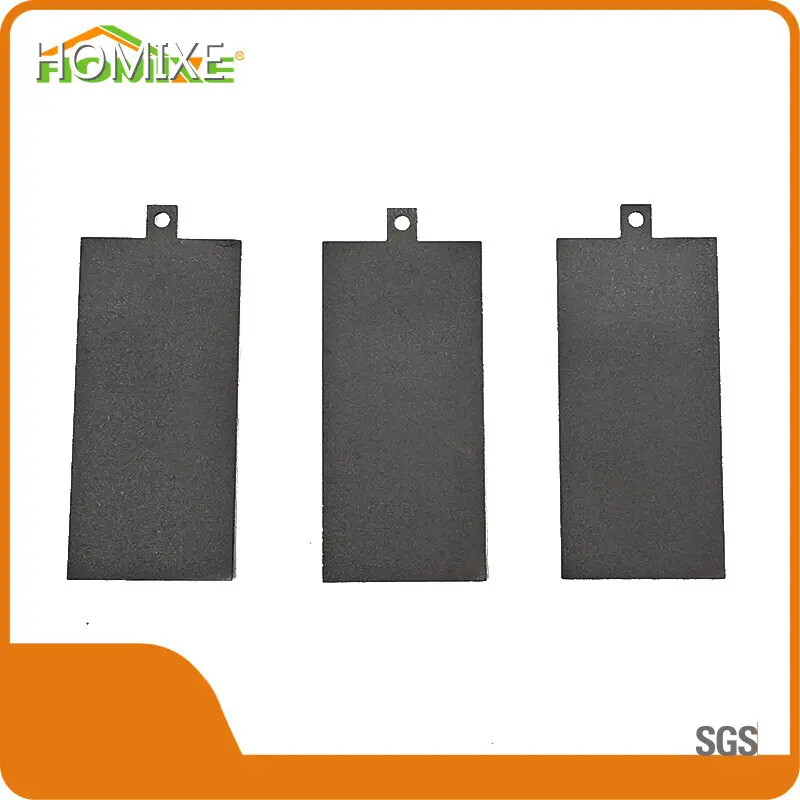

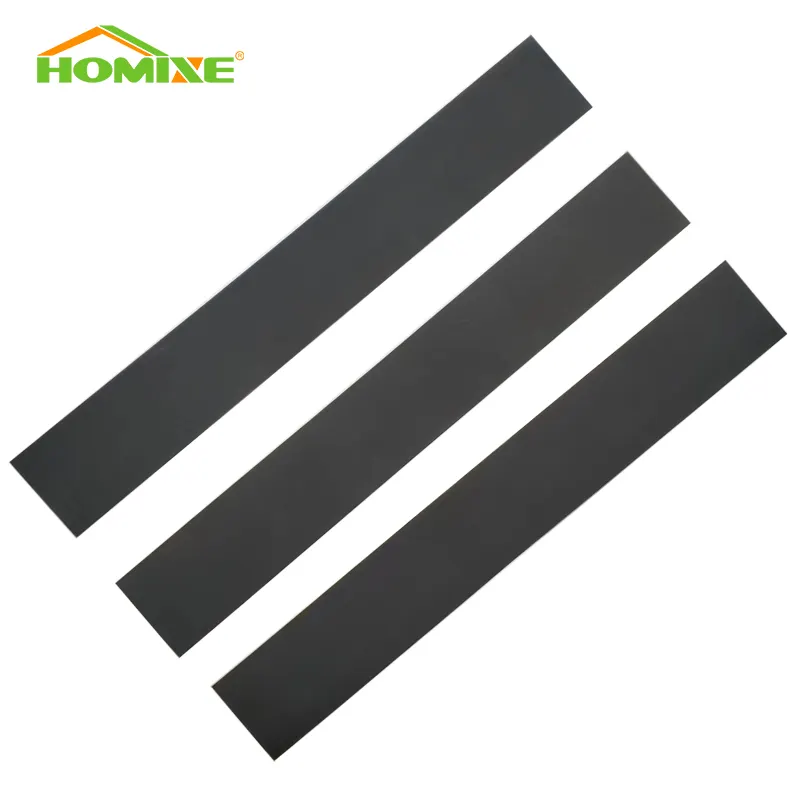

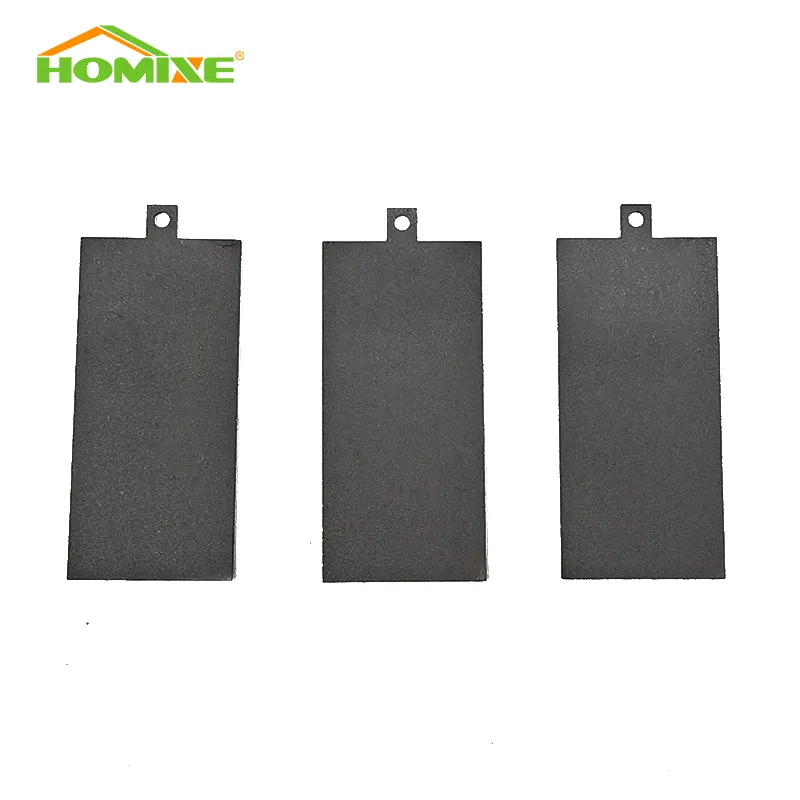

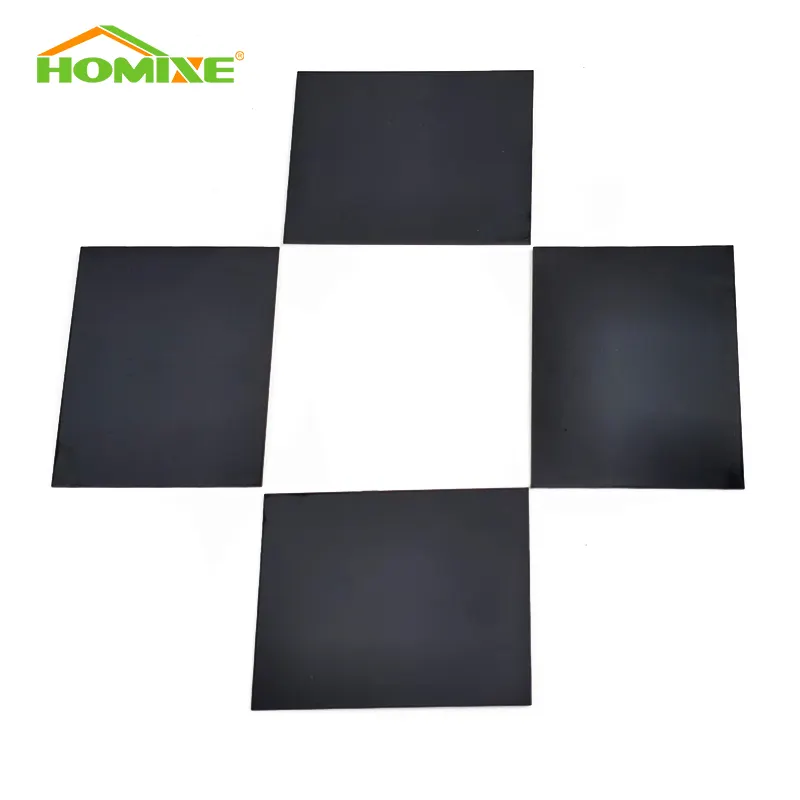

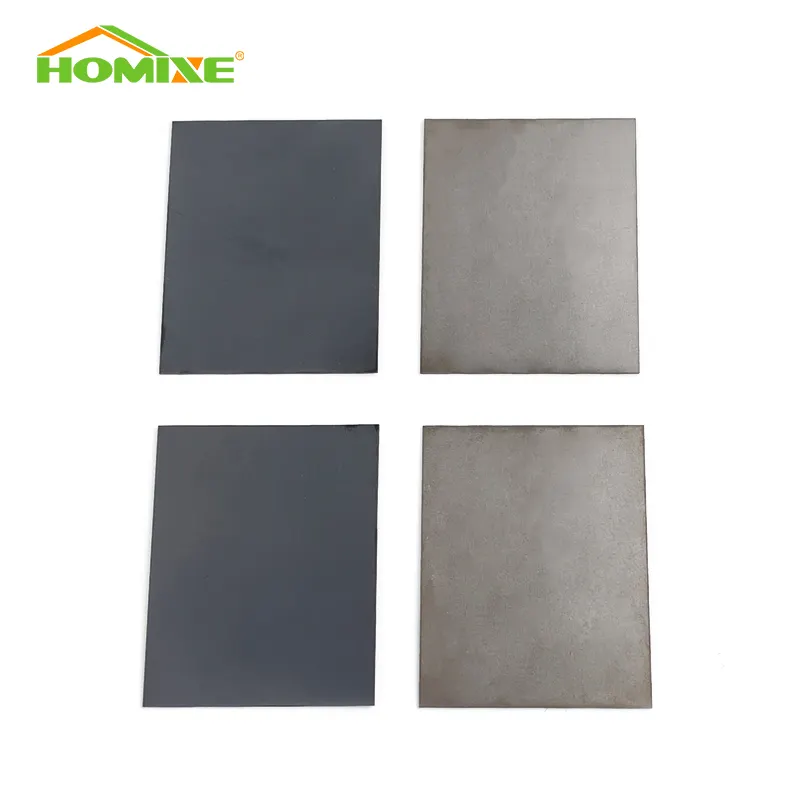

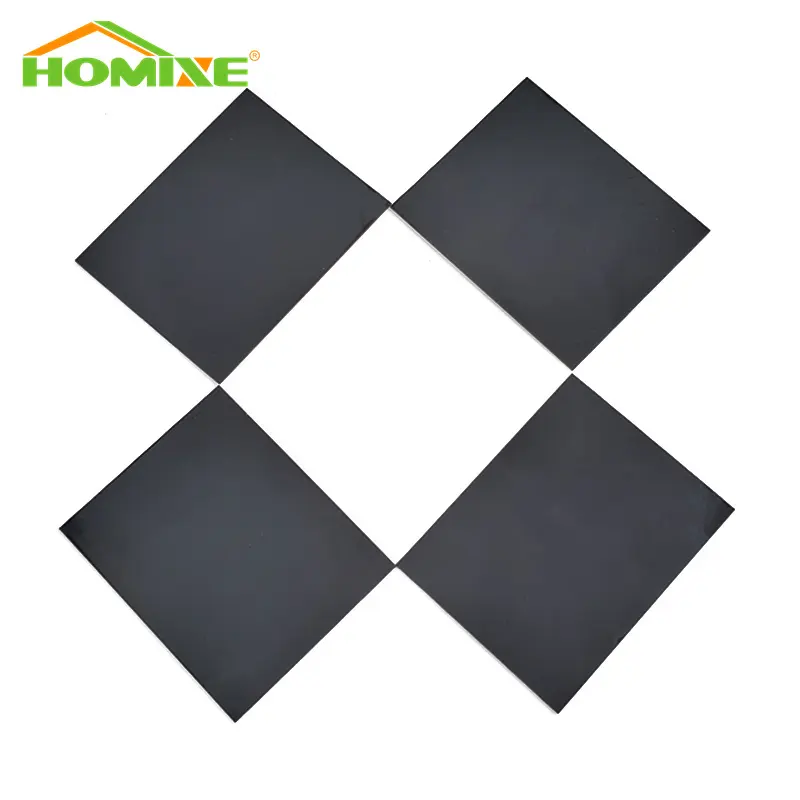

Product Display

m5807/1721980475c0d90f.png

m5807/1721980475d43e43.png

m5807/1721980475ac219d.png

feature of ruthenium-iridium titanium anode compared with traditional electroplating

1) Low trough voltage, small energy consumption

2) The rate of electrode loss is small and the size is stable

3) The corrosion resistance of the electrode is good, and the insolubility does not pollute the bath liquid, so that the performance of the coating is more reliable.

4) Titanium anode adopts new materials and structure, which greatly reduces its weight and facilitates daily operation

5) Long service life, and the matrix can be reused, saving costs

6) The oxygen evolution overpotential is about 0.5V lower than that of the lead alloy insoluble anode, which reduces the tank voltage and reduces energy consumption.

Application scope of electrode series products for electrolytic water disinfection:

1. Electroplating.

2. Electrolytic copper.

3. Electrolytic copper sulfate.

4. Hypochlorite generator for swimming pool.

5. Sea water antifouling.

6. Cathode Protection.

Ru-Ir Coated Titanium Electrodes Anode Advantage

Corrosion Resistance

These electrodes demonstrate superior corrosion resistance, ensuring durability in harsh environments.

Increased Surface Area

The unique construction of these electrodes provides a large surface area, enhancing electrolytic efficiency and operational effectiveness.

High Current Efficiency

Ruthenium-iridium coated electrodes achieve high current efficiency, reducing energy consumption compared to traditional anodes like graphite.

Extended Lifetime

Documented to perform effectively for over 8 years in industrial settings, such as chlor-alkali processes, these electrodes are known for their long operational life.

Application Scenario

Company Advantages

FOSHAN HOMETI NEW MATERIAL CO.,LTD has strong economic and technological strength in producing titanium anode. With sales networks spread all over the world, we gradually become one of the leaders in the industry. We have a long-term and stable market in China, the United States, Japan, Canada, etc. The R&D team has been working hard to create more products including titanium anode to cater to the market demands of various countries. We hope to become a great leader in the titanium anode industry. We have the vision and courage to imagine new products, and then pull together the talented people and resources to make them a reality.
Over the years, we have been dedicated to the R&D and production of our products. If you want to know more about our products, please contact our online customer service staff.
